A Deep Dive on AWS KMS Key Access and AWS Key Grants

• November 17, 2022

We recently published a blog post about Encryption in AWS and Multi-Account Access. As a follow-up to that post, we’re focusing on encryption access in AWS and information on how CloudQuery can help including how to audit access to those encryption keys and the underlying data to help assist with your security and compliance needs.

CloudQuery has released the following updates to encryption resources to aid with Encryption discovery in AWS in addition to our existing coverage of AWS and AWS resources:

Support for KMS Key Aliases
Support for KMS Key Grants
Support for CloudHSMv2

In this post, we will deep dive on KMS Key Access via KMS Key Grants and best practices with KMS Key Grants. Access via KMS Key Grants can be a forgotten means of allowing unauthorized applications, users, and other undesired access to use and manage KMS Keys.

KMS Key Access #

KMS Key Access is similar to other resource access in AWS and the underlying access system in AWS: AWS Identity and Access Management. Typical AWS evaluation of access to a resource is done via AWS’s policy evaluation logic that evaluates the request context, evaluates whether the actions are within a single account or cross-account (between 2 distinct AWS accounts), and evaluating identity-based policies with resource-based policies and other advanced policies such as permission boundaries, Organizational Service-Control Policies, Session Policies, and more.

The below image is from AWS's documentation regarding policy evaluation for evaluating identity-based policies with resource-based policies.

Typical policy evaluation within a single account is done as a logical **or**, where an explicit permission on either the resource-based policy or the identity-based policy evaluations allows for access to the resource for resources that support resource-based policies. More information from AWS can be found here. An example is an S3 Bucket Policy. If an S3 Bucket Policy allows an IAM entity within the account explicit access to the S3 Bucket, the IAM entity does not need explicit allows on the identity-based policies for access to the S3 Bucket.

Unlike most other resource-based policies, KMS Key access within an AWS Account ****must******** be granted on the KMS resource-based policy: the KMS Key policy. If the KMS Key policy doesn’t explicitly allow access, an identity cannot access the KMS key via identity-based policies. We’ll deep dive on KMS Key policies and recommendations in a later post.

However, KMS Keys are a unique resource in AWS, where there’s a third access mechanism for KMS Keys: KMS Key Grants. KMS Key Grants are not manageable or viewable via the AWS Management Console and can only be managed and viewed via AWS CLI and API/SDK.

There are 3 access mechanisms for KMS Keys:

Key Policy (Resource-based policy)
IAM Policies
Grants

Thus, we have the following important differences about access to KMS Keys vs access to other resources in AWS:

Permissions must be granted explicitly on the KMS Key Policy (Resource-based policy).
Access to KMS Keys can also be managed by KMS Key Grants.

Access via KMS Key Grants #

Grants allow for AWS principals to use KMS Keys. One such example is when sharing encrypted EBS Snapshots. Grants can also be used for temporary permissions because they can be used without modifying key policies or IAM policies. AWS also recommends using KMS Key Grants if the Key Policy size approaches the limit of 32 KB.

As such, grants are used by AWS services that integrate with AWS KMS such as RDS and ACM.

We’ve submitted requests to AWS to update their AWS Key Management Service Documentation (on 11/14/22) to better reflect service integration with KMS: https://docs.aws.amazon.com/kms/latest/developerguide/service-integration.html

Grant Permissions #

The following permissions and associated API/CLI actions are related to managing KMS Key Grants:

kms:CreateGrant
kms:ListGrants
kms:ListRetirableGrants
kms:RetireGrant
kms:RevokeGrant

We’ll go into detail on some of these permissions later in this post.

A sample key policy that allows for a key administrator to Create Grants is as follows. Note with this policy, we’ve modified the default key policy from AWS so that it does not enable IAM policies. If you plan on using this key policy, ensure that any other permissions necessary are either explicitly allowed on the key policy or are enabled in IAM similar to the Allow access to key metadata to the account statement.

{
    "Sid": "AllowRootAccountAccess",
    "Effect": "Allow",
    "Principal": {
        "AWS": "arn:aws:iam::123412341234:root"
    },
    "Action": "kms:*",
    "Resource": "*",
    "Condition": {
        "StringEquals": {
            "aws:PrincipalType": "Account"
        }
    }
},
{
    "Sid": "AllowKeyAdministrator",
    "Effect": "Allow",
    "Principal": {
        "AWS": "arn:aws:iam::123412341234:role/KeyAdminRole"
    },
    "Action": "kms:*",
    "Resource": "*"
},
{
     "Sid": "Allow access to key metadata to the account",
     "Effect": "Allow",
     "Principal": {
         "AWS": "arn:aws:iam::123412341234:root"
     },
     "Action": [
         "kms:Describe*",
         "kms:Get*",
         "kms:List*"
      ],
      "Resource": "*"
 }

Creating Grants #

aws kms create-grant --key-id arn:aws:kms:us-east-1:123412341234:key/aaaaaaaa-1234-1234-1234-123412341234 --grantee-principal arn:aws:iam::123412341234:user/sample-user --operations DescribeKey --profile yourprofile --region us-east-1

The ability and permissions to create a grant must either come from a policy or a grant. If no grants exist, the permissions must come from the KMS Key Policy or if the Key Policy allows for management via identity policies, can then come from identity policies.

The permission to create a grant differs slightly depending on how the grantee principal gets permissions to call CreateGrant:

	Policy as Permission Source	Grant as Permission Source
Constraints	Refer to Policy for Constraints, kms condition key.	Must be as strict as the parent grant
Operations	Refer to Policy if kms is used.	Can only allow a subset (some or all) of the operations in the parent grant.

Nested Granting #

A Grantee Principal that was granted access to CreateGrant via a Grant can then create child grants.

aws kms create-grant --key-id arn:aws:kms:us-east-1:123412341234:key/aaaaaaaa-1234-1234-1234-123412341234 --grantee-principal arn:aws:iam::123412341234:user/hugh-grant --operations DescribeKey CreateGrant --profile myprofilewithoutpermpolicy --region us-east-1

In the above code snippet, we've granted our hugh-grant user the permissions to DescribeKey and CreateGrant.

Now, we’ll try the following 3 use cases:

Creating a Grant with more operations than the parent grant.

aws kms create-grant --key-id arn:aws:kms:us-east-1:123412341234:key/aaaaaaaa-1234-1234-1234-123412341234 --grantee-principal arn:aws:iam::123412341234:user/sample-user --operations DescribeKey Decrypt CreateGrant --profile hughgrant --region us-east-1

Creating a Grant with the same operations as the parent grant.

aws kms create-grant --key-id arn:aws:kms:us-east-1:123412341234:key/aaaaaaaa-1234-1234-1234-123412341234 --grantee-principal arn:aws:iam::123412341234:user/sample-user --operations DescribeKey CreateGrant --profile hughgrant --region us-east-1

Creating a Grant with fewer operations as the parent grant.

aws kms create-grant --key-id arn:aws:kms:us-east-1:123412341234:key/aaaaaaaa-1234-1234-1234-123412341234 --grantee-principal arn:aws:iam::123412341234:user/sample-user --operations DescribeKey --profile hughgrant --region us-east-1

In this case, the following use cases succeed since the child grant is as strict or stricter than the parent grant:

Creating a Grant with the same operations as the parent grant.
Creating a Grant with fewer operations as the parent grant.

The following use case failed since the child grant is not as strict or stricter than the parent grant:

Creating a Grant with more operations than the parent grant.

With the failed use case, the error message on CLI will display a more generic AccessDeniedException error message that will reference no identity-based policy allows the kms:CreateGrant action.

Logging of KMS Key Grants #

CloudTrail keeps a record of events and actions taken via the AWS CLI, SDKs & APIs, and Management Console. By default, CloudTrail logs management events and not data events.

CloudTrail records some activity made outside of your AWS Account. Activity outside of the AWS Account that can be recorded include:

KMS Key Grants on a KMS Key in your AWS Account.
EBS on SharedSnapshotVolumeCreated and SharedSnapshotCopyInitiated for Shared EBS Snapshots.

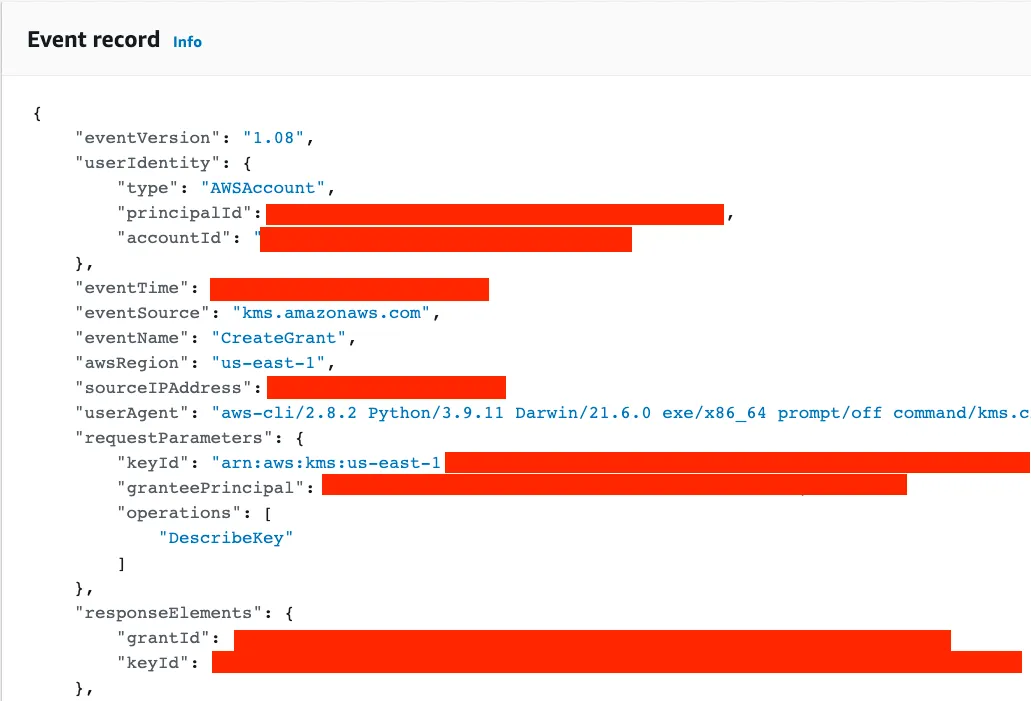

Even if the IAM principal creating a key Grants made on KMS resources within an account (Account A) lives outside of your account (Account B), the CreateGrant API call will still show up in account A's CloudTrail logs.

Note that the userIdentity element of the CloudTrail event record may contain unexpected results for the type field. Typically, this will specify the type of identity such as Root, IAMUser, AssumedRole, Role, FederatedUser, Directory, AWSService, Unknown, or AWSAccount. For cross-account access, AWSAccount may appear in the logs. In the example above, AWSAccount shows up for cross-account access using an IAM user. We've pointed out this difference to AWS.

Managing KMS Key Grant Lifecycle #

AWS provides 2 different operations for managing KMS Key Grant lifecycle:

While both of these actions provide the same result of deleting a KMS Key Grant, which eliminates the permissions the grant allows. This is one of a few use cases in AWS where multiple operations may provide the same result. However, these permissions are authorized differently.

A few key differences include:

RevokeGrant is similar to a typical AWS KMS operation and can be controlled via key policies and IAM policies via the kms:RevokeGrant permission. The usage of kms:RetireGrant in policies does not behave similarly.
RetireGrant can be granted by specifying a retiring principal when creating the grant. RetireGrant can also be granted to the Grantee Principal similar to other available operations in CreateGrant. Principals specified in the grant can then retire a grant without the kms:RetireGrant permission explicitly allowed in either a key policy or an identity policy.

aws kms create-grant --key-id arn:aws:kms:us-east-1:123412341234:key/aaaaaaaa-1234-1234-1234-123412341234 --grantee-principal arn:aws:iam::123412341234:user/sample-user --retiring-principal arn:aws:iam::123412341234:user/sample-principal --operations DescribeKey --profile testprofile --region us-east-1

aws kms create-grant --key-id arn:aws:kms:us-east-1:123412341234:key/aaaaaaaa-1234-1234-1234-123412341234 --grantee-principal arn:aws:iam::123412341234:user/sample-user --operations DescribeKey RetireGrant --profile testprofile --region us-east-1

Recommendations #

Along with AWS Best Practices for KMS Key Grants, we recommend the additional following practices:

Limit grant ability to usage of the KMS Key and not management of future grants.

The list of supported grant operations provided by AWS includes cryptographic operations such as Decrypt and other operations such as CreateGrant. We recommend limiting the ability to CreateGrant to only Key Administrators and first-level grants.

Further limit delegation abilities to only the Key Administrators and Services

We recommend limiting the ability to delegate access to the KMS key to only Key Administrators and Services. This includes the kms:CreateGrant permission and the kms:PutKeyPolicy. Below is an example key policy that limits key delegation abilities to the root account user and to the KeyAdminRole, but does not enable IAM policy access.

{
    "Sid": "AllowRootAccountAccess",
    "Effect": "Allow",
    "Principal": {
        "AWS": "arn:aws:iam::123412341234:root"
    },
    "Action": "kms:*",
    "Resource": "*",
    "Condition": {
        "StringEquals": {
            "aws:PrincipalType": "Account"
        }
    }
},
{
    "Sid": "AllowKeyAdministrator",
    "Effect": "Allow",
    "Principal": {
        "AWS": "arn:aws:iam::123412341234:role/KeyAdminRole"
    },
    "Action": "kms:*",
    "Resource": "*"
}

Limit grant delegation to AWS Services usage where possible.

This can be done by the kms:GrantIsForAWSResource Condition Key here. An example key policy for EC2 Autoscaling with encrypted volumes is below.

{
   "Sid": "Allow service-linked role use of the customer managed key",
   "Effect": "Allow",
   "Principal": {
       "AWS": [
           "arn:aws:iam::123412341234:role/aws-service-role/autoscaling.amazonaws.com/AWSServiceRoleForAutoScaling"
       ]
   },
   "Action": [
       "kms:Encrypt",
       "kms:Decrypt",
       "kms:ReEncrypt*",
       "kms:GenerateDataKey*",
       "kms:DescribeKey"
   ],
   "Resource": "*"
},
{
   "Sid": "Allow attachment of persistent resources",
   "Effect": "Allow",
   "Principal": {
       "AWS": [
           "arn:aws:iam::123412341234:role/aws-service-role/autoscaling.amazonaws.com/AWSServiceRoleForAutoScaling"
       ]
   },
   "Action": [
       "kms:CreateGrant"
   ],
   "Resource": "*",
   "Condition": {
       "Bool": {
           "kms:GrantIsForAWSResource": true
       }
    }
}

Logging and Monitoring KMS Key Grants

We recommend monitoring KMS Key Grants in CloudTrail as shown in the logging section above to monitor for external accounts and undesired usage and creation of KMS Key Grants.

Take inventory of KMS Key Grants and validate usage of KMS Key Grants.

The following CloudQuery query in postgresql finds grants where the grantee principal is not an AWS service.

SELECT * from aws_kms_key_grants where (grantee_principal NOT LIKE '%.amazonaws.com' AND grantee_principal NOT LIKE 'AWS Internal');

If retiring/revoking KMS Key Grants, ensure the Key Grant is not being used by production systems to avoid outages and adverse impact.
Determine appropriate organization and team strategy for different access mechanisms for KMS regarding KMS Key Policies, Identity Policies, and KMS Key Grants.

If you have comments, feedback on this post, follow-up topics you’d like to see, or would like to talk about your KMS and encryption experiences - email us at [email protected] or come chat with us on our Community! We'd love to hear your feedback and thoughts on encryption and your experiences with KMS Key Grants.

Ready to dive deeper? Contact CloudQuery here or join the CloudQuery Community to connect with other users and experts. You can also try out CloudQuery locally with our quick start guide or explore the CloudQuery Platform (currently in beta) for a more scalable solution.

Want help getting started? Join the CloudQuery community to connect with other users and experts, or message our team directly here if you have any questions.

References and Useful Links #

AWS: Grants in AWS KMS

AWS: Authentication and access control for AWS KMS

AWS: Logging and monitoring in AWS Key Management Service

CloudQuery: Source Plugins

CloudQuery: AWS Plugin
